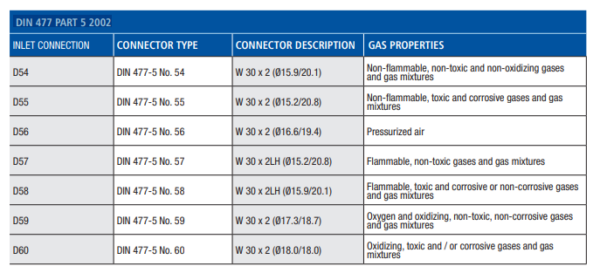

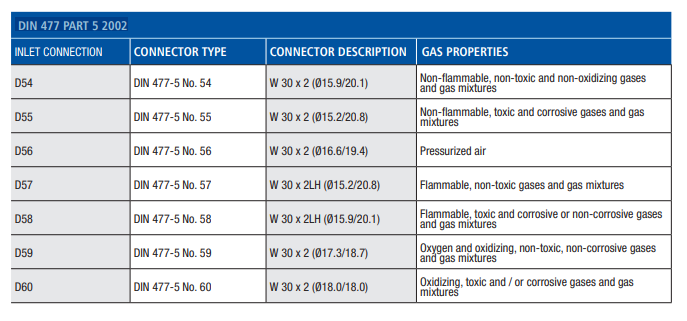

DIN 477 PART 5 2002
| INLET CONNECTION | CONNECTOR TYPE | CONNECTOR DESCRIPTION | GAS PROPERTIES |
| D54 | Din 477-5 No. 54 | W 30 x 2 (Ø15.9/20.1) | Non-flammable, non-toxic and non-oxidizing gases and gas mixtures |
| D55 | Din 477-5 No. 55 | W 30 x 2 (Ø15.2/20.8) | Non-flammable, toxic and corrosive gases and gas mixtures |
| D56 | Din 477-5 No. 56 | W 30 x 2 (Ø16.6/19.4) | Pressurized air |
| D57 | Din 477-5 No. 57 | W 30 x 2LH (Ø15.2/20.8) | Flammable, non-toxic gases and gas mixtures |
| D58 | Din 477-5 No. 58 | W 30 x 2LH (Ø15.9/20.1) | Flammable, toxic and corrosive or non-corrosive gases and gas mixtures |
| D59 | Din 477-5 No. 59 | W 30 x 2 (Ø17.3/18.7) | Oxygen and oxidizing, non-toxic, non-corrosive gases and gas mixtures |
| D60 | Din 477-5 No. 60 | W 30 x 2 (Ø18.0/18.0) | Oxidizing, toxic and / or corrosive gases and gas mixtures |
