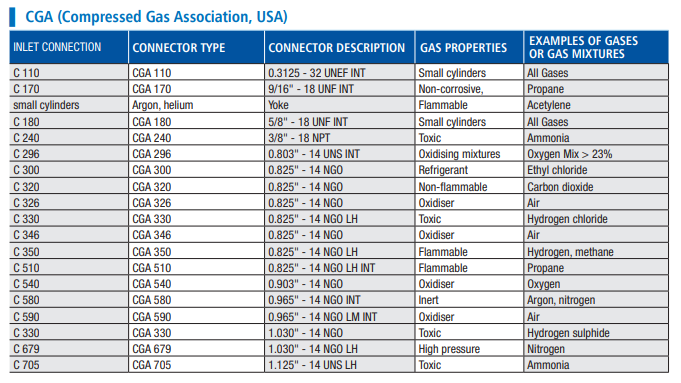

CGA (Compressed Gas Association, USA)

INLET CONNECTION	CONNECTOR TYPE	CONNECTOR DESCRIPTION	GAS PROPERTIES	EXAMPLES OF GASES OR GAS MIXTURES

C 110	CGA110	0.3125 – 32 UNEF INT	Small cylinders	All Gases
C 170	CGA170	9/16" – 18 UNF INT	Non-corrosive,	Propane
small cylinders	Argon, helium	Yoke	Flammable	Acetylene
C 180	CGA180	5/8" – 18 UNF INT	Small cylinders	All Gases
C 240	CGA240	3/8" – 18 NPT	Toxic	Ammonia
C 296	CGA296	0.803" – 14 UNS INT	Oxidising mixtures	Oxygen Mix > 23%
C 300	CGA300	0.825" – 14 NGO	Refrigerant	Ethyl chloride
C 320	CGA320	0.825" – 14 NGO	Non-flammable	Carbon dioxide
C326	CGA326	0.825" – 14 NGO	Oxidiser	Air
C330	CGA330	0.825" – 14 NGO LH	Toxic	Hydrogen chloride
C346	CGA346	0.825" – 14 NGO	Oxidiser	Air
C350	CGA350	0.825" – 14 NGO LH	Flammable	Hydrogen, methane
C510	CGA510	0.825" – 14 NGO LH INT	Flammable	Propane
C540	CGA540	0.903" – 14 NGO	Oxidiser	oxygen
C580	CGA580	0.965" – 14 NGO INT	Inert	Argon, nitrogen
C590	CGA590	0.965" – 14 NGO LM INT	Oxidiser	Air
C330	CGA330	1.030" – 14 NGO	Toxic	Hydrogen sulphide
C679	CGA679	1.030" – 14 NGO LH	High pressure	Nitrogen
C705	CGA705	1.125" – 14 UNS LH	Toxic	Ammonia
