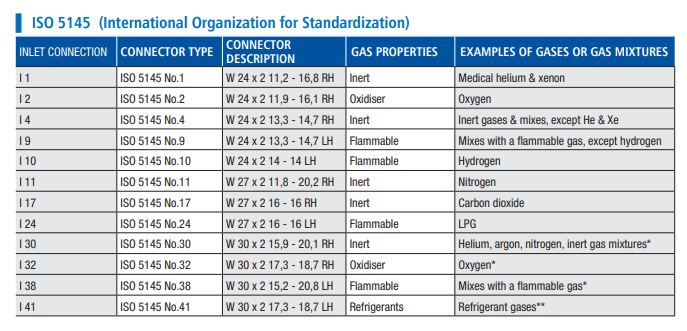

ISO 5145 (International Organization for Standardization)
| INLET CONNECTION | CONNECTOR TYPE | CONNECTOR DESCRIPTION | GAS PROPERTIES | EXAMPLES OF GASES OR GAS MIXTURES |
| I1 | ISO 5145 No.1 | W 24 x 2 11,2 – 16,8 RH | Inert | Medical helium & xenon |
| I2 | ISO 5145 No.2 | W 24 x 2 11,9 – 16,1 RH | Oxidiser | Oxygen |
| I4 | ISO 5145 No.4 | W 24 x 2 13,3 – 14,7 RH | Inert | Inert gases & mixes, except He & Xe |
| I9 | ISO 5145 No.9 | W 24 x 2 13,3 – 14,7 LH | Flammable | Mixes with a flammable gas, except hydrogen |
| I10 | ISO 5145 No.10 | W 24 x 2 14 – 14 LH | Flammable | Hydrogen |
| I11 | ISO 5145 No.11 | W 27 x 2 11,8 – 20,2 RH | Inert | Nitrogen |
| I17 | ISO 5145 No.17 | W 27 x 2 16 – 16 RH | Inert | Carbon dioxide |
| I24 | ISO 5145 No.24 | W 27 x 2 16 – 16 LH | Flammable | LPG |
| I30 | ISO 5145 No.30 | W 30 x 2 15,9 – 20,1 RH | Inert | Helium, argon, nitrogen, inert gas mixtures* |
| I32 | ISO 5145 No.32 | W 30 x 2 17,3 – 18,7 RH | Oxidiser | Oxygen* |
| I38 | ISO 5145 No.38 | W 30 x 2 15,2 – 20,8 LH | Flammable | Mixes with a flammable gas* |
| I41 | ISO 5145 No.41 | W 30 x 2 17,3 – 18,7 LH | Refrigerants | Refrigerant gases** |
