HP704 (Chrome Plated Brass)
A chrome plated brass single stage regulator for noncorrosive
gases for lecture bottles. The Model HP 704 is
suitable for:
- High Purity
- Non-corrosive gases
- EPA protocol gases
- Calibration gases
- Sampling gases
FEATURES
- Diffusion resistant stainless steel diaphragm
- One-piece encapsulated seat design to protect seat from particulate contamination
- 1 1/2” gauges
- Conforms to CGA E-4 standard for gas pressure
- Regulators
- Relief valve

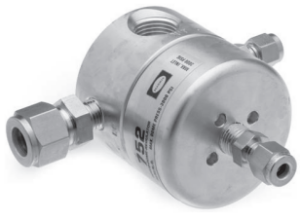

The adjacent picture shows the regulator with an inlet stem, outlet valve and pressure relief valve. These parts would need to be requested when ordering.
Dowload the PDF below for information on this product.If you any further questions, feel free to contact us.
HP 704 |
||||
| Model No. | Delivery pressure | CGA/Inlet fitting | ||
| Delivery | Outlet Gauge | |||
| HP 704 | 0-15 PSIG | 0-30 PSI | 170 | |
| 0-100 PSIG | 0-150 PSI | 180 | ||
| 000 (No Inlet) | ||||
