HP750 (Brass)

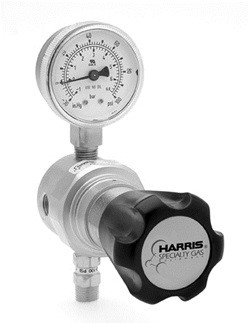

The Model HP 750 series regulator is a high pressure,
high flow regulator system. The key to the performance of
this regulator is the servo-dome load technology. The
servo-dome load feature allows the regulator to supply high
flow rates with straight line pressure regulation.
The HP 750 is suitable for:
- Laser assist gases
- Pressure transfer
- Blanketing & high flow manifold
Dowload the PDF below for information on this product.If you any further questions, feel free to contact us.
HP 750 |
||||
| Part NO. | Model NO. | Max inlet PSIG | Delivery pressure range PSIG | Delivery pressure gauge PSIG |
| 3000860 | HP750-500-3000 | 3000 | 0-500 | 600 |
| 3000865 | HP750-250-3000 | 3000 | 0-250 | 400 |
| 3000866 | HP750-1000-3000 | 3000 | 0-1000 | 2000 |
| 3000867 | HP750-250-5500 | 5500 | 0-250 | 400 |
| 3000868 | HP750-500-5500 | 5500 | 0-500 | 600 |
| 3000869 | HP750-1000-5500 | 5500 | 0-1000 | 2000 |
