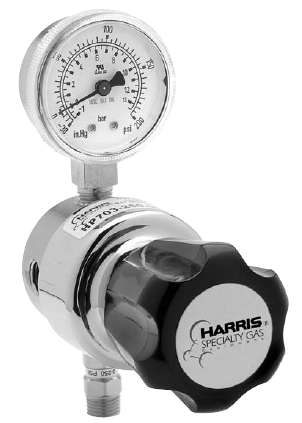

HP703 (Brass)
Features:
- 2 1/8” 302 stainless steel diaphragm eliminates contamination from diffusion or outgassing
- One-piece encapsulated seat design to protect seat from particulate contamination
- Chrome plated bonnet, body and fittings
- 2” chrome plated dual scale gauge (psi/bar)
- External relief valve standard
- 1 x 10-8 cc/sec. inboard helium leak rate maintains gas purity levels
HP703 |
|||||
| Model No. | Delivery Pressure | Inlet Fitting | Accessories | Options | |
| Delivery | (Outlet Gauge) | ||||
| HP703 | 0-15PSIG | (30" Hg Vac-30 psi/2 bar) | 000 (1/4" FNPT) | 1/4" MNPT Needle Valve | Without Relief Valve |
| 0-50 PSIG | (30" Hg Vac-100 psi/7 bar) | 001 (1/4" MNPT) | 1/4" FNPT Diaph. Valve | No Gauge | |
| 0-125 PSIG | (30" Hg Vac-200 psi.14 bar) | 1/4" MNPT Nipple | |||
| 0-250 PSIG | (400 psi/28 bar) | 1/4" FNPT Port | |||
| 1/4" Tube Fitting | |||||
| 1/8" Tube Fitting | |||||
| 1/4" MNPT Hose Barb | |||||
| 1/8" MNPT Hose Barb | |||||
| 1/4" FNPT Hose Barb | |||||
| 1/4" FNPT Needle Valve | |||||
