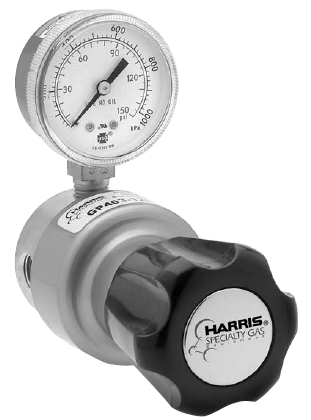

GP403 (Brass)
A brass single stage pipeline regulator with a neoprene
diaphragm for general purpose laboratory applications.
The GP 403 is not recommended for high purity
applications which may be sensitive to contamination
due to elastomeric components. The GP 403 is suitable
for:
- Non-corrosive industrial grade gases
- Purging
- Pressure testing
- Blanketing
FEATURES
- 0-15, 0-50, 0-125 and 0-250 PSIG delivery pressure
- Neoprene diaphragm for greater sensitivity
- One-piece encapsulated seat design to protect the seat from particulate contamination
- Tamper-proof, self reseating internal safety valve
- 2” dual scale brass gauge (psi/kPa)
- Conforms to CGA E-4 standard for gas pressure regulators
For full details on the product, download the PDF below.
GP403 |
||||
Part no. | Model no. | Max Inlet PSIG | Delivery Pressure Range PSIG | Delivery Pressure Gauge PSIG |
3001315 | GP403-15 | 3000 | 0-15 | 30 |
3001316 | GP403-50 | 3000 | 0-50 | 60 |
3001317 | GP403-125 | 3000 | 0-125 | 150 |
3001318 | GP403-250 | 3000 | 0-250 | 400 |
