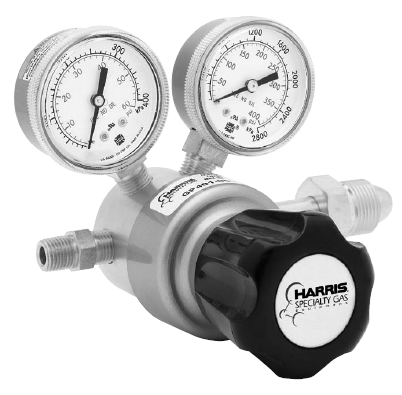

GP401 (Brass)

A brass single stage regulator with a neoprene
diaphragm for general purpose laboratory applications
where a slight rise in delivery pressure from a full to
near empty cylinder can be tolerated. The GP 401 is
not recommended for high purity applications which
may be sensitive to contamination due to elastomeric
components. The Model GP 401 is suitable for:

• Non-corrosive industrial grade gases
• Purging
• Pressure testing
• Gas shielding

FEATURES

• 0-15, 0-50, 0-125 and 0-250 PSIG delivery pressure
• Neoprene diaphragm for greater sensitivity
• One-piece encapsulated seat design, to protect the seat from particulate contamination
• Tamper-proof, self reseating internal safety valve
• 2” dual scale brass gauges (psi/kPa)
• Conforms to CGA E-4 standard for gas pressure regulators

For full details on the product, download the PDF below
