100 Bar Membrane Housing 1/8 or 1/4

Materials 316L Stainless Steel Pressure 100 Bar Ports 1/8" or 1/4” Membrane MT.33.

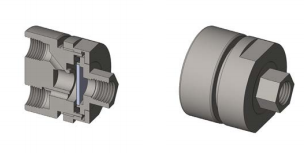

GSM105 membrane housings use a porous PTFE membrane, which is supported by a sintered porous stainless steel disc on the outlet side. Any liquid in the gas sample will flow to the drain port. This port can also be used as a bypass function for the main flow. The housing design allows a quick change of the membrane and the threaded cap means no tools are required for access. Standard housings have NPT ports and include Viton seals. Other seal types are available as an option. BSPT and BSPP port types are also available. The housings are free from welds and comply with NACE MR-01-75.
