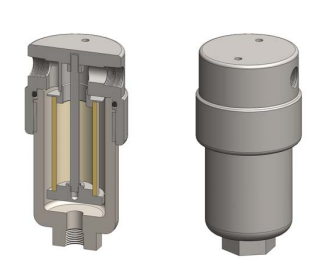

200 Bar Filter Housing 1/4 or 1/2
Materials 316L Stainless Steel Pressure 200 Bar Ports 1/4” or 1/2” Element 25.64.
SS216 series filter housings are specified for 200 Bar 1/4" line size applications and for 1/2" applications where response time must be kept short. If the flow rate or contamination is high, or where service intervals must be kept as long as possible, SS236 series housings should be considered. For applications less than 100 Bar see the SS215 series and for over 200 Bar see the SS218 series. Standard housings have NPT ports and a Viton seal. Other seal types are available as an option. BSPT and BSPP port types are also available. The housings are free from welds and comply with NACE MR-01-75 and are CE marked in accordance with PED 97/23/EC. These housings can also be supplied in a wide range of exotic materials, such as Hastelloy, Monel, Titanium etc.
Filter Housing | |||
Port Size | Drain | Max | |
Ordering Information | NPT | NPT | W/P |
Inch | Inch | Bar | |
SS216-201 | 1/4 | None | 200 |
SS216-221 | 1/4 | 1/4 | 200 |
SS216-401 | 1/2 | None | 200 |
SS216-421 | 1/2 | 1/4 | 200 |
SS216-441 | 1/2 | 1/2 | 200 |
