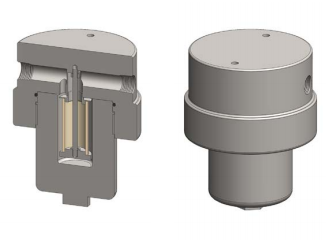

700 Bar Filter Housing 1/4 or 1/2

Materials 316L Stainless Steel Pressure 700 Bar Ports 1/4” or 1/2” Element 25.64.

SS219 series filter housings are specified for 700 Bar 1/4" line size applications and for 1/2" applications where response time must be kept short. If the flow rate or contamination is high, or where service intervals must be kept as long as possible, SS239 series housings should be considered. For applications at lower pressures see the SS215, SS216, and SS218 series housings. Standard housings have NPT ports and a Viton seal. Other seal types are available as an option. BSPT and BSPP port types are also available. The housings are free from welds and comply with NACE MR-01-75 and are CE marked in accordance with PED 97/23/EC. These housings can also be supplied in a wide range of exotic materials, such as Hastelloy, Monel, Titanium etc.

Filter Housing
  Port Size Drain Max
Ordering Information NPT NPT W/P
Inch Inch Bar
SS219-201 1/4 None 700
SS219-221 1/4 1/4 700
SS219-401 1/2 None 700
SS219-421 1/2 1/4 700
SS219-441 1/2 1/2 700
