7 Bar Inverted Polyamide Filter Housing 1/8 or 1/4

Materials Polyamide

Pressure 7 Bar

Ports 1/8" & 1/4”

Element 25.30. & 25.35.

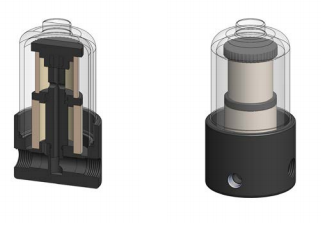

NNS filter housings are constructed from polyamide and the bowl also uses a clear polyamide. The housings are fitted with a coalescing pre-filter and a particulate filter that are of different lengths making incorrect installation impossible. The short bowl gives a low internal volume for fast response times. The housing is designed so the ports and drain connection are all arranged in the head. This means that the drain does not have to be disconnected to change the filter element. Standard housings have NPT ports and Viton seals.

Inverted Polyamide Filter Housing
  Port Size Drain Max
Ordering Information NPT NPT W/P
Inch Inch Bar
NNS241-111 1/8 1/4 7
NNS241-211 1/4 1/8 7
