7 Bar Polyamide Filter Housing 1/4 or 1/8 – NL121
Materials Polyamide
Pressure 7 Bar
Ports Ø1/4" or 1/8” NPT
Element 12.57.

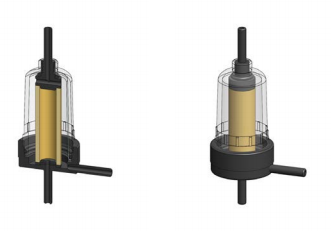

NL121 series filter housings are constructed entirely from polyamide – the bowl uses a clear polyamide. They are supplied with 1/8" NPT ports or push-on type spigots. These housings are designed for coalescing applications and are ideal for portable anaylsers. Standard housings have a Viton seal. Other seal types are available as an option. BSPT and BSPP port types are also available.
| Polyamide Filter Housing | |||
| Port Size | Drain | Max | |
| Ordering Information | NPT | NPT | W/P |
| Inch | Inch | Bar | |
| NL121-111 | 1/8 | 1/8 | 7 |
| NL121-161 | 1/8 | Manual | 7 |
| NL121-229 | 1/4 Spigot | 1/4 Spigot | 7 |
| NL121-269 | 1/4 Spigot | Manual | 7 |
