10 Bar Float Valve Housing 1/8 or 1/4
Materials Polyamide
Pressure 10 Bar
Ports 1/8” or 1/4”

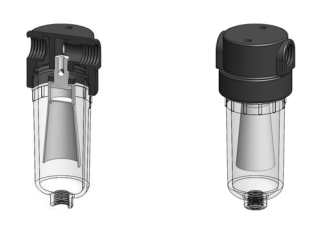

NN122.F series float valve housings are based on our standard NN122 series and have a float valve to shut off the flow when collected liquids reach a certain level. Float Valve housings are an essential filtration tool when gas is being drawn to an analyser or other instrument, prenting the carry-over of bulk liquids. Normally these are used after coalescing filter housing as a safety device. Special and custom housings can also be supplied with internal arrangements to suit specific applications.
| Float Valve Housing | |||
| Port Size | Drain | Max | |
| Ordering Information | NPT | NPT | W/P |
| Inch | Inch | Bar | |
| NN122-101F | 1/8 | None | 10 |
| NN122-111F | 1/8 | 1/8 | 10 |
| NN122-161F | 1/8 | Manual | 10 |
| NN122-201F | 1/4 | None | 10 |
| NN122-211F | 1/4 | 1/8 | 10 |
| NN122-261F | 1/4 | Manual | 10 |
