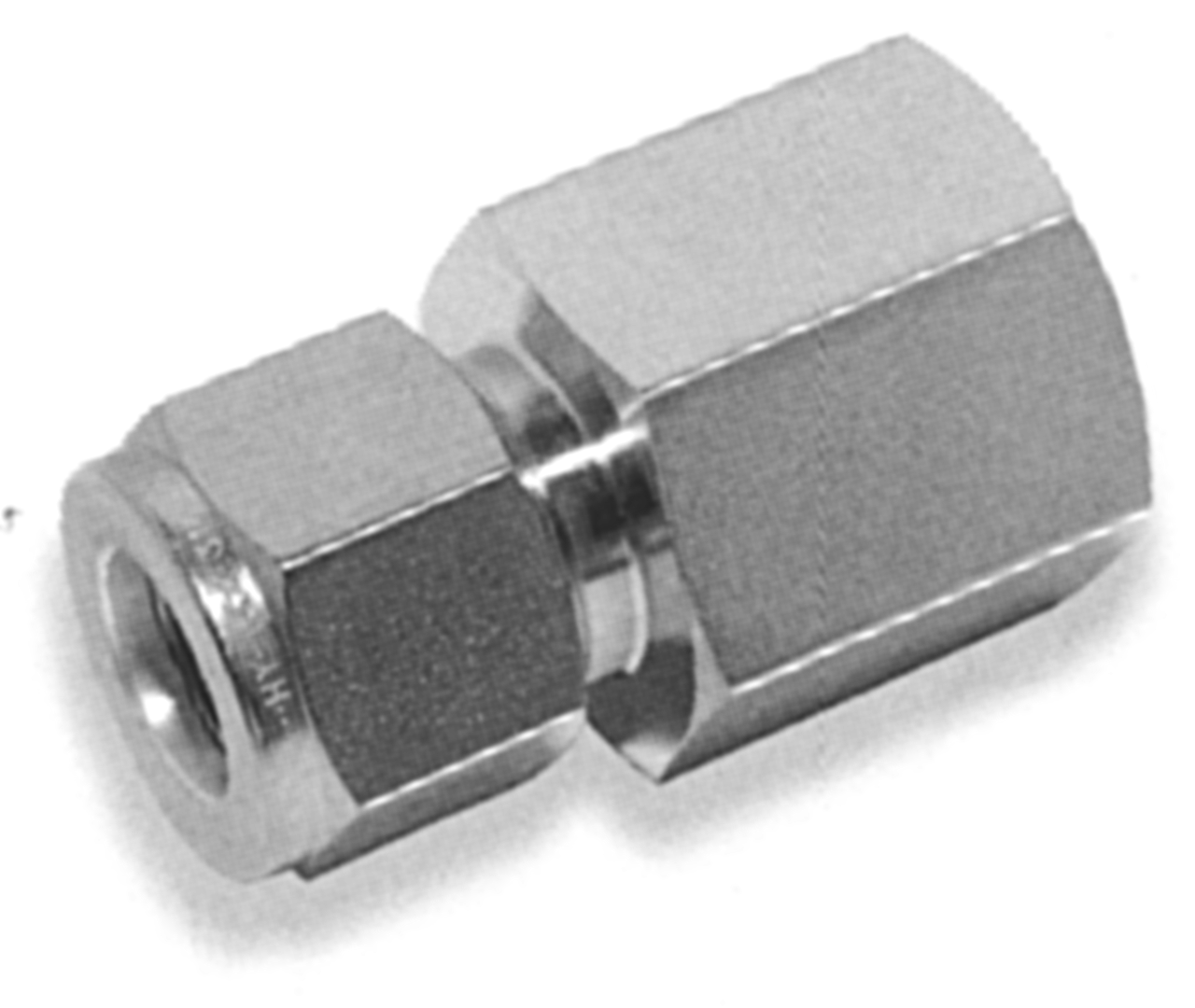

Gauge Connector, Imperial (Inch)
Example to create a part number:- | |||||||
CGC-4-2G-S316 | S316 = 316 STAINLESS STEEL | ||||||
CGC-4-2G-BRAS | BRAS = BRASS | ||||||
CGC-4-2G-MONE | MONE = MONEL | ||||||
* Please note that some materials are not always available so please contact us for your enquiry. We are always pleased to help. | |||||||
Other materials are available upon request. | |||||||
For a full list of dimensions shown in the drawing below, please click on the PDF:- | |||||||
Female BSP Gauge Connector to Imperial | ||
Connection 1 (A) | Connection 2 (T) | |
Ordering Information | Tube O.D. | Female Thread |
inch | BSPP (parallel) | |
CGC-4-2G-S316 | 1/4 | 1/8 |
CGC-4-4G-S316 | 1/4 | 1/4 |
CGC-4-6G-S316 | 1/4 | 3/8 |
CGC-4-8G-S316 | 1/4 | 1/2 |
CGC-5-4G-S316 | 5/16 | 1/4 |
CGC-5-8G-S316 | 5/16 | 1/2 |
CGC-6-4G-S316 | 3/8 | 1/4 |
CGC-6-6G-S316 | 3/8 | 3/8 |
CGC-6-8G-S316 | 3/8 | 1/2 |
CGC-8-4G-S316 | 1/2 | 1/4 |
CGC-8-6G-S316 | 1/2 | 3/8 |
CGC-8-8G-S316 | 1/2 | 1/2 |
Female BSP Gauge Connector to Metric | ||
Connection 1 (A) | Connection 2 (T) | |
Ordering Information | Tube O.D. | Female Thread |
mm | BSPP (parallel) | |
CGC-3M-4G-S316 | 3 | 1/4 |
CGC-6M-4G-S316 | 6 | 1/4 |
CGC-6M-6G-S316 | 6 | 3/8 |
CGC-6M-8G-S316 | 6 | 1/2 |
CGC-8M-4G-S316 | 8 | 1/4 |
CGC-8M-6G-S316 | 8 | 3/8 |
CGC-8M-8G-S316 | 8 | 1/2 |
CGC-10M-4G-S316 | 10 | 1/4 |
CGC-10M-6G-S316 | 10 | 3/8 |
CGC-10M-8G-S316 | 10 | 1/2 |
CGC-12M-4G-S316 | 12 | 1/4 |
CGC-12M-6G-S316 | 12 | 3/8 |
CGC-12M-8G-S316 | 12 | 1/2 |
CGC-20M-8G-S316 | 20 | 1/2 |
CGC-22M-8G-S316 | 22 | 1/2 |
