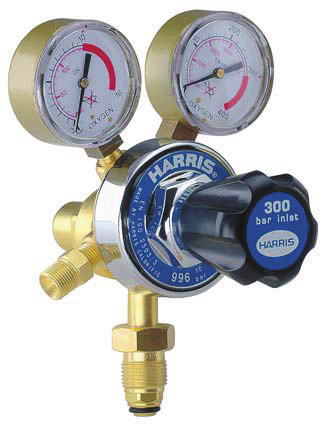

Model 996 (Brass)
Two stage two gauge regulator
Applications:
- Used where stable outlet pressure is required
- Ideal for quality cutting,welding and laboratory applications.
Features:
- Forged brass body for maximum strength
- Maximum inlet pressure of 300 bar
- High pressure capsulate seat with Kel-F (CTFE) sealing surface
- First stage reduces full cylinder pressure by approximately controls delivery pressure
- Durable chrome bonnet
- Bull nose "O" ring
For any additional information about the products, download the PDF below.
Model 996 |
||||||
| Uk part No | Gas | Max inlet pressure (bar) | Delivery pressure (bar) | Max air flow (m3/h) | Delivery pressure gauge (bar) | Supply pressure gauge (bar) |
| H1041 | Acetylene | 25 | 0-1.5 | 25 | 0-2.5 | 0-40 |
| H1042 | Oxygen | 300 | 0-4 | 85 | 0-6 | 0-400 |
| H1043 | Oxygen | 300 | 0-10 | 100 | 0-16 | 0-400 |
| H1049 | Oxygen | 300 | 0-15 | 120 | 0-25 | 0-400 |
| H1096 | Inert gas | 300 | 0-4 | 85 | 0-6 | 0-400 |
| H1048 | Inert gas | 300 | 0-10 | 100 | 0-16 | 0-400 |
| H1054 | Inert gas | 300 | 0-15 | 120 | 0-25 | 0-400 |
| H1047 | Hydrogen | 300 | 0-4 | 85 | 0-6 | 0-400 |
| H1070 | Hydrogen | 300 | 0-10 | 100 | 0-16 | 0-400 |
| H1050 | Hydrogen | 300 | 0-15 | 120 | 0-25 | 0-400 |
| H1065 | C02 | 300 | 0-10 | 100 | 0-16 | 0-400 |
| H1066 | Compressed Air | 300 | 0-10 | 100 | 0-16 | 0-400 |
| Stainless steel diaphragm options available | ||||||
