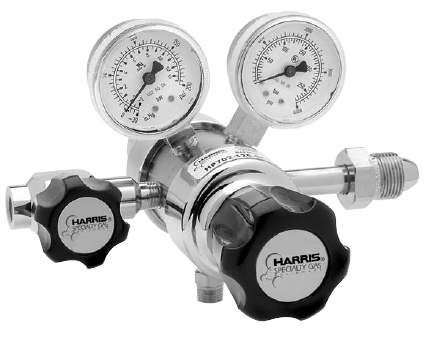

HP 702 (Chrome Plated Brass)
A chrome plated brass two stage cylinder regulator with
a stainless steel diaphragm for general laboratory use.
The HP 702 provides constant delivery pressure from
full to near empty cylinder conditions. The HP 702 is
suitable for:
- Non-corrosive gases
- Purging
- Pressure testing
- Blanketing
- Recommended for gas purity up to Grade 5.0 (99.999).
FEATURES
- 2 1/8” 302 stainless steel diaphragm eliminates
- contamination from diffusion or outgassing
- One-piece encapsulated seat design to protect seat from particulate contamination
- Chrome plated bonnet, body and fittings
- 2” chrome plated dual scale gauges (psi/bar)
- External relief valve standard
- 1 x 10-8 cc/sec. inboard helium leak rate maintains gas purity levels
- Maximum inlet 3000 PSIG except for models with CGA 300 and 510, equipped with 400 PSIG inlet gauge
HP702 |
|||||
| Model No. | Delivery Pressure | CGA Inlet Fitting | Accessories | Options | |
| Delivery | (Outlet Gauge) | ||||
| HP702 | 0-15PSIG | (30" Hg Vac-30 psi/2 bar) | 280 350 | 1/4" MNPT Needle Valve | Without Relief Valve |
| 0-50 PSIG | (30" Hg Vac-100 psi/7 bar) | 296 500 | 1/4" FNPT Diaph. Valve | No Gauges | |
| 0-125 PSIG | (30" Hg Vac-200 psi.14 bar) | 300 510 | 1/4" MNPT Nipple | ||
| 0-250 PSIG | (400 psi/28 bar) | 320 540 | 1/4" FNPT Port | ||
| 326 580 | 1/4" Tube Fitting | ||||
| 346 590 | 1/8" Tube Fitting | ||||
| 000 (1/4" FNPT) | 1/4" MNPT Hose Barb | ||||
| 001 (1/4" MNPT) | 1/8" MNPT Hose Barb | ||||
| 1/4" FNPT Hose Barb | |||||
| 1/4" FNPT Needle Valve | |||||
| Single Regulator Alarm | |||||
| SG 910 BR Regulator Mounting Station | |||||
