HP722C (Chrome Plated Brass)
Description: A two stage cylinder regulator available in chrome plated brass regulator
for constant delivery pressure from full to near empty cylinder conditions.
The HP722 is suitable for:
- High purity gas applications
- Research sample systems gases
- Process analyser gases
- Gas chromatography
- EPA protocol gases
- Laser gas systems
- Emission monitoring systems
Recommended for gaspurity levels of grade 5.0 (99.999) and higher

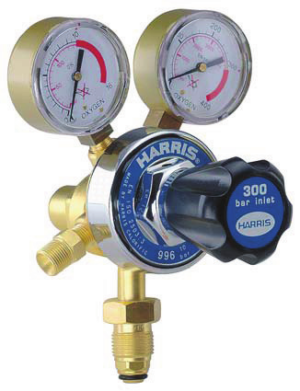

The adjacent picture shows the regulator with an inlet stem, outlet valve and pressure relief valve. These parts would need to be requested when ordering.
HP 722 |
||||
| Model No. | Delivery pressure | CGA Inlet fitting | ||
| Delivery | Outlet Gauge | |||
| HP 722 | 0-15 PSIG | 30" Hg Vac-30 psi/2 bar | 296 | 510 |
| HP 722C | 0-50 PSIG | 30" Hg Vac-100 psi/17 bar | 300 | 540 |
| (chrome plated) | 0-125 PSIG | 30" Hg Vac-200 psi/14 bar | 320 | 580 |
| 0-250 PSIG | 400 psi/28 bar | 326 | 590 | |
| 0-500 PSIG | 1000 psi/70 bar | 346 | ||
| 350 | ||||
| 000 (1/4" FNPT) | ||||
| 001 (1/4" MNPT) | ||||
