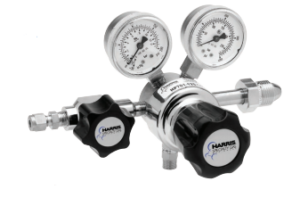

904 – High Purity single stage gas Regulator
Model 904 is a chrome plated single stage cylinder regulator with a stainless steel diaphragm for general purposes application where high purity gas is required. The 904 can be used when a slight pressure rise from full to empty cylinder can be tolerated.
APPLICATIONS:
- Non-corrosive gases
- Purging
- Pressure testing
- Blanketing
FEATURES:
- Recommended purity levels of grade up to 5.0 (99.999%)
- External safety relief valve with 1/4” NPT female thread for external release hose connection
- 302 stainless steel diaphragm eliminates contamination from diffusion or outgassing
- One piece encapsulated seat design includes a sintered filter to protect the seat from particulate contamination
- Forged brass body fully chromed
- Chrome plated bonnet and fittings
- Capsule seat with Kel-F (CTFE) sealing surface
- Maximum inlet pressure 300 bar (4350 psig)
