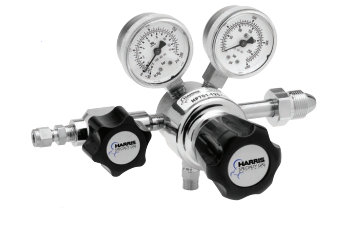

HPI 701 – High purity – chrome plated brass regulator

Model HP 701 is a chrome plated single stage cylinder regulator with a stainless steel diaphragm for general laboratory use. The HP 701 can be used when a slight pressure rise from full to empty cylinder can be tolerated

APPLICATIONS:

• Non-corrosive gases
• Vacuum control
• Purging
• Pressure testing
• Blanketing

FEATURES:

• Recommended for gas purity up to grade 5.0 (99.999)
• 302L stainless steel diaphragm eliminates contamination from diffusion or outgassing
• One-piece encapsulated seat design to protect seat from particulate contamination
• Chrome plated bonnet, body and fittings
• 1×10-8 mbar I/s He inboard helium leak rate to maintain gas purity levels
• Maximum inlet pressure 210 bar (3000 psig)
