7 Bar Heatable Filter Housing 1/8 or 1/4
Materials 316L SS Pressure 7 Bar Ports 1/8” or 1/4” Element 12.32.? to 25.178.

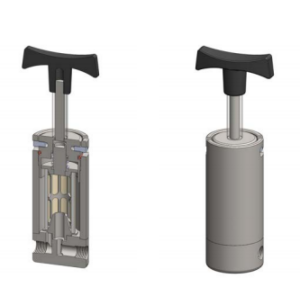

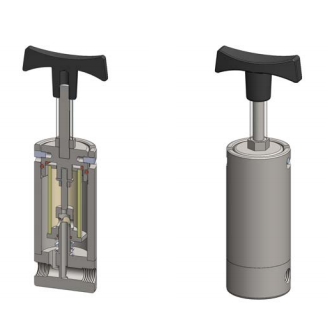

The HST series filter housings are designed for hot gas analysis, for example diesel exhaust. The housings can be heated by fitting a suitable heater to the body , installing in a heated enclosure. The bayonet connection allows fast filter element service even at operating temperatures. The housings have the inlet and outlet ports in the side of the housing and a tie rod & element retainer. Standard housings have NPT ports and include silicone seals. Viton seals are available as an option. BSPT and BSPP port types are also available.
Heatable Filter Housing | ||
Port Size | Max | |
Ordering Information | NPT | W/P |
Inch | Bar | |
HST-111-101 | 1/8 | 7 |
HST-111-201 | 1/4 | 7 |
HST-121-101 | 1/8 | 7 |
HST-121-201 | 1/4 | 7 |
HST-211-201 | 1/4 | 7 |
HST-231-201 | 1/4 | 7 |
