7 Bar Heatable Filter Housing 1/4 – HSS Series

Materials 316L SS Pressure 7 Bar Ports 1/4” Element 25.64.? & 25.178.

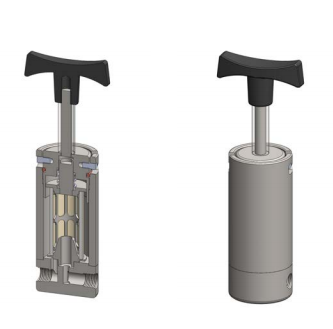

The HSS series filter housings are designed for hot gas analysis, for example diesel exhaust. The housings can be heated by fitting a suitable heater to the body , installing in a heated enclosure. The bayonet connection allows fast filter element service even at operating temperatures. The housings have the inlet and outlet ports in the side of the housing and a support core to hold the element. Standard housings have NPT ports and include silicone seals. Viton seals are available as an option. BSPT and BSPP port types are also available.

Heatable Filter Housing
  Port Size Max
Ordering Information NPT W/P
Inch Bar
HSS-211-201 1/4 7
HSS-231-201 1/4 7
