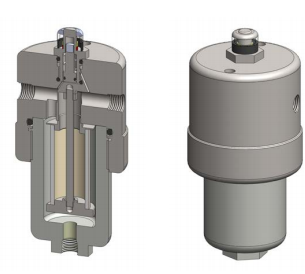

400 Bar Filter Housing with Differential Pressure Indicators 1/4 or 1/2

Materials 316L Stainless Steel Pressure 400 Bar Ports 1/4” or 1/2” Element 25.64.

SiS218 series filter housings with differential pressure indicators are specified for 400 Bar 1/4" line size and for 1/2" applications where response time must be kept short. If the flow rate or contamination is high, or where service intervals must be kept as long as possible, SiS238 series housings should be considered. For applications up to 100 Bar see the SiS215 series and for up to 200 Bar see the SiS216 series. Standard housings have NPT ports and Viton seals. Other seal types are available as an option. BSPT and BSPP port types are also available. The housings are free from welds and comply with NACE MR-01-75 and are CE marked in accordance with PED 97/23/EC. These housings can also be supplied in a wide range of exotic materials, such as Hastelloy, Monel, Titanium etc.

Filter Housing with DPI
  Port Size Drain Max
Ordering Information NPT NPT W/P
Inch Inch Bar
SiS218-201 1/4 None 400
SiS218-221 1/4 1/4 400
SiS218-401 1/2 None 400
SiS218-421 1/2 1/4 400
SiS218-441 1/2 1/2 400
