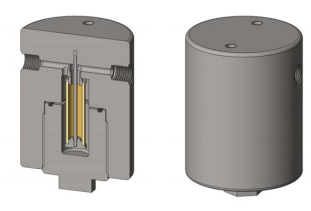

1050 Bar Filter Housing 1/4 or 3/8 Coned/Threaded

Materials 316L Stainless Steel Pressure 1050 Bar Ports 1/4" & 3/8"

C & T Element 12.57.? SS1210 series filter housings are specified for applications up to 1050 Bar. For applications less than 1050 Bar see the SS127 and SS129 series housings. Standard housings have 1/4" & 3/8" coned and threaded ports and a Viton seal. Other port sizes and seal types are available as an option. The housings are free from welds and comply with NACE MR-01-75 and are CE marked in accordance with PED 97/23/EC. These housings can also be supplied in a wide range of exotic materials, such as Hastelloy, Monel, Titanium etc.

Filter Housing
  Port Size Drain Max
Ordering Information C & T C & T W/P
Inch Inch Bar
SS1210-205 1/4 None 1050
SS1210-225 1/4 1/4 1050
SS1210-305 3/8 None 1050
SS1210-335 3/8 3/8 1050
