17 Bar Regulator 1/8 or 1/4
Materials 316L Stainless Steel Pressure 17 Bar Ports 1/8” or 1/4”

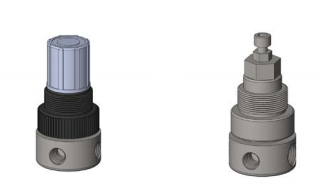

RSP103 and RSS103 regulator housings are specified for 1/8" & 1/4" line size applications. The housings are constructed from 316L stainless steel with a stainless steel or plastic bonnet. The regulators can be supplied as relieving or non-relieving and the sufix .R or .NR should be used after the part number. Springs can be supplied for 0-2, 0-4 and 0-8 Bar, see table below for part number suffix. Standard housings have NPT ports and Viton seals. The housings are free from welds and comply with NACE MR-01-75 and conform to SEP of PED 97/23/EC.
Drain Vessel | ||
Port Size | Max | |
Ordering Information | NPT | W/P |
Inch | Bar | |
RSP103-101 | 1/8 | 17 |
RSP103-201 | 1/4 | 17 |
RSS103-101 | 1/8 | 17 |
RSS103-201 | 1/4 | 17 |
