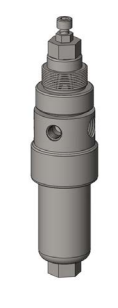

17 Bar Filter Regulator 1/8 or 1/4 -RSP123
Materials 316L Stainless Steel Pressure 17 Bar Ports 1/8” & 1/4” Element 12.57.
RSP123 series filter regulator housings are specified for 1/8" & 1/4" line size applications and have a filter element integrated into the regulator. The housings are constructed from 316L stainless steel with a plastic bonnet. The regulators can be supplied as relieving or non-relieving and the sufix .R or .NR should be used after the part number. Springs can be supplied for 0-2, 0-4 and 0-8 Bar, see table below for part number suffix. Standard housings have NPT ports and Viton seals. The housings are free from welds and comply with NACE MR-01-75 and conform to SEP of PED 97/23/EC.
Filter Regulator | |||
Port Size | Drain | Max | |
Ordering Information | NPT | NPT | W/P |
Inch | Inch | Bar | |
RSP123-101 | 1/8 | None | 17 |
RSP123-111 | 1/8 | 1/8 | 17 |
RSP123-161 | 1/8 | Manual | 17 |
RSP123-201 | 1/4 | None | 17 |
RSP123-221 | 1/4 | 1/4 | 17 |
RSP123-261 | 1/4 | Manual | 17 |
