7 Bar PVDF Filter Housing 1/8 or 1/4
Materials PVDF
Pressure 7 Bar
Ports 1/8” or 1/4”
Element 12.57.

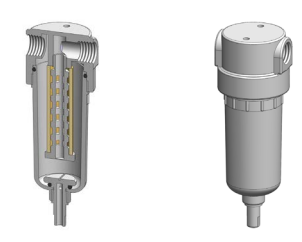

KK121 series filter housings are constructed entirely from PVDF. They are supplied with 1/8" or 1/4" ports and have a range of drain options. These housings are specified where a good chemical resistance is required. Standard housings have NPT ports and a Viton seal. Other seal types are available as an option. BSPT and BSPP port types are also available.
| PVDF Filter Housing | |||
| Port Size | Drain | Max | |
| Ordering Information | NPT | NPT | W/P |
| Inch | Inch | Bar | |
| KK121-101 | 1/8 | None | 7 |
| KK121-111 | 1/8 | 1/8 | 7 |
| KK121-161 | 1/8 | Manual | 7 |
| KK121-201 | 1/4 | None | 7 |
| KK121-211 | 1/4 | 1/8 | 7 |
| KK121-261 | 1/4 | Manual | 7 |
