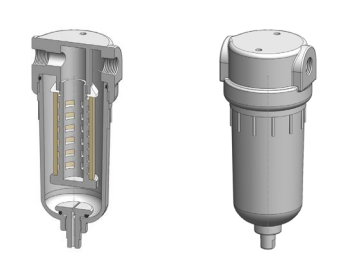

7 Bar PVDF Filter Housing 1/4 or 1/2 – KK211
Materials PVDF
Pressure 7 Bar
Ports 1/4” or 1/2”
Element 25.64.
KK211 series filter housings are constructed entirely from PVDF. They are supplied with 1/4" or 1/2" ports and have a range of drain options. These housings are specified where a good chemical resistance is required. Standard housings have NPT ports and a Viton seal. Other seal types are available as an option. BSPT and BSPP port types are also available.
| PVDF Filter Housing | |||
| Port Size | Drain | Max | |
| Ordering Information | NPT | NPT | W/P |
| Inch | Inch | Bar | |
| KK211-201 | 1/4 | None | 7 |
| KK211-221 | 1/4 | 1/4 | 7 |
| KK211-261 | 1/4 | Manual | 7 |
| KK211-401 | 1/2 | None | 7 |
| KK211-421 | 1/2 | 1/4 | 7 |
| KK211-461 | 1/2 | Manual | 7 |
