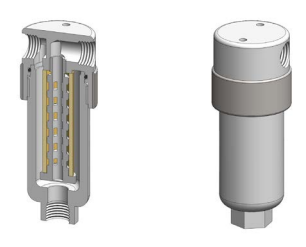

7 Bar PTFE Filter Housing 1/8 or 1/4 – FF121
Materials PTFE
Pressure 7 Bar
Ports 1/8” or 1/4”
Element 12.57.
FF121 series filter housings are specified for 1/8" & 1/4" line size applications where a PTFE material is required. FF111 series housings should be considered for applications where the response time is critical Standard housings have NPT ports and a Viton seal. Other seal types are available as an option. BSPT and BSPP port types are also available. Due to the nature of PTFE the housings are fitted with a 316L stainless steel collar on the head.
| PTFE Filter Housing | |||
| Port Size | Drain | Max | |
| Ordering Information | NPT | NPT | W/P |
| Inch | Inch | Bar | |
| FF121-101 | 1/8 | None | 7 |
| FF121-111 | 1/8 | 1/8 | 7 |
| FF121-201 | 1/4 | None | 7 |
| FF121-221 | 1/4 | 1/4 | 7 |
