7 Bar PTFE Filter Housing 1/4 or 1/2 – FG211

Materials PTFE & Pyrex Glass

Pressure 7 Bar

Ports 1/4” or 1/2”

Element 25.64.

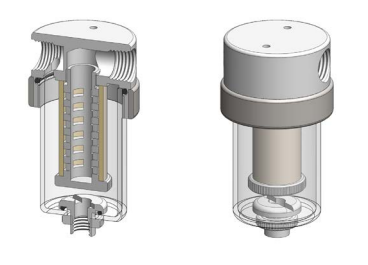

FG211 series filter housings are constructed from PTFE, but use a Pyrex glass bowl so that the element can be monitored. They are specified for 1/4" & 1/2" line size applications. Standard housings have NPT ports and a Viton seal. Other seal types are available as an option. BSPT and BSPP port types are also available. Due to the nature of PTFE the housings are fitted with a 316L stainless steel collar on the head.

PTFE Filter Housing
  Port Size Drain  Max
Ordering Information NPT NPT W/P
Inch Inch Bar
FG211-201 1/4 None 7
FG211-221 1/4 1/4 7
FG211-401 1/2 None 7
FG211-421 1/2 1/4 7
