7 Bar PTFE Filter Housing 1/8 or 1/4 – FG121
Materials PTFE & Pyrex Glass
Pressure 7 Bar
Ports 1/8” or 1/4”
Element 12.57.

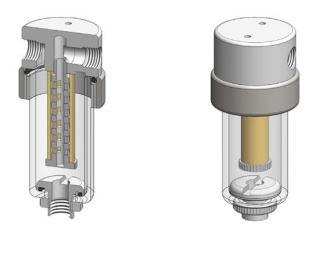

FG121 series filter housings are constructed from PTFE, but use a Pyrex glass bowl so that the element can be monitored. They are specified for 1/8" & 1/4" line size applications. Standard housings have NPT ports and a Viton seal. Other seal types are available as an option. BSPT and BSPP port types are also available. Due to the nature of PTFE the housings are fitted with a 316L stainless steel collar on the head.
| PTFE Filter Housing | |||
| Port Size | Drain | Max | |
| Ordering Information | NPT | NPT | W/P |
| Inch | Inch | Bar | |
| FG121-101 | 1/8 | None | 7 |
| FG121-111 | 1/8 | 1/8 | 7 |
| FG121-201 | 1/4 | None | 7 |
| FG121-221 | 1/4 | 1/4 | 7 |
