7 Bar Twin Polyamide Filter Housing 1/4 or 1/8

Materials Polyamide

Pressure 7 Bar

Ports Ø1/4" or 1/8” NPT

Element 12.32. & 12.35.

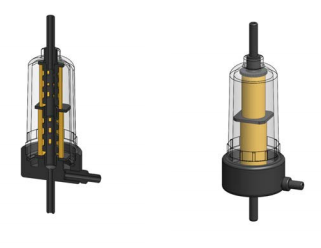

NL141 series filter housings are constructed entirely from polyamide – the bowl uses a clear polyamide. They are supplied with 1/8" NPT ports or push-on type spigots. The twin-element design allows both a coalescing element and particulate element to be installed in a single housing making them ideal for portable anaylser applications. Standard housings have a Viton seal. Other seal types are available as an option. BSPT and BSPP port types are also available.

Twin Polyamide Filter Housing
  Port Size Drain  Max
Ordering Information NPT NPT W/P
Inch Inch Bar
NL141-111 1/8 1/8 7
NL141-269 1/4 Spigot Manual 7
