17 Bar Filter Housing with Differential Pressure Indicator 1/4 or 1/2

Materials Aluminium

Pressure 17 Bar

Ports 1/4” or 1/2”

Element 25.64.

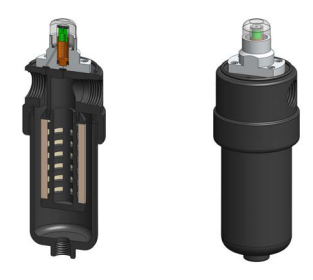

AiA213 series filter housings with differential pressure indicators have an anodised aluminium head and bowl with polyamide internals. They are supplied with 1/4" or 1/2" ports and have a range of drain options included an automatic version. These housings are suitable for compressed air systems and general filtration applications. Standard housings have NPT ports and Viton seals. Other seal types are available as an option. BSPT and BSPP port types are also available.

Filter Housing with Differential Pressure Indicator
  Port Size Drain Max
Ordering Information NPT NPT W/P
Inch Inch Bar
AiA213-201 1/4 None 17
AiA213-221 1/4 1/4 17
AiA213-261 1/4 Manual 17
AiA213-271 1/4 Automatic 17
AiA213-401 1/2 None 17
AiA213-421 1/2 1/4 17
AiA213-461 1/2 Manual 17
AiA213-471 1/2 Automatic 17
