17 Bar Filter Housing 1/4 or 1/2 – AA213
Materials Aluminium
Pressure 17 Bar
Ports 1/4” or 1/2”
Element 25.64.

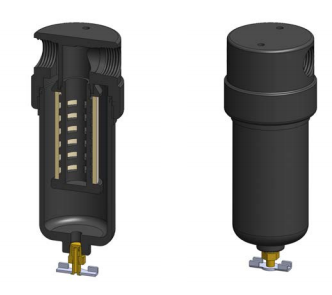

AA213 series filter housings have an anodised aluminium head and bowl with polyamide internals. They are supplied with 1/4" or 1/2" ports and have a range of drain options included an automatic version. These housings are suitable for compressed air systems and general filtration applications. Standard housings have NPT ports and Viton seals. Other seal types are available as an option. BSPT and BSPP port types are also available
Filter Housing with Differential Pressure Indicator | |||
Port Size | Drain | Max | |
Ordering Information | NPT | NPT | W/P |
Inch | Inch | Bar | |
AA213-201 | 1/4 | None | 17 |
AA213-221 | 1/4 | 1/8 | 17 |
AA213-261 | 1/4 | Manual | 17 |
AA213-271 | 1/4 | Automatic | 17 |
AA213-401 | 1/2 | None | 17 |
AA213-421 | 1/2 | 1/8 | 17 |
AA213-461 | 1/2 | Manual | 17 |
AA213-471 | 1/2 | Automatic | 17 |
