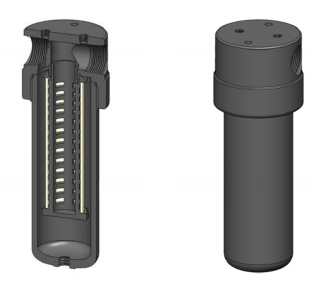

17 Bar Filter Housing 3/4 or 1 – AA323
Materials Aluminium
Pressure 17 Bar
Ports 3/4” or 1"
Element 38.152.
AA323 series filter housings have an anodised aluminium head and bowl with polyamide internals. They are supplied with 3/4" or 1" ports and have a range of drain options. These housings are suitable for compressed air systems and general filtration applications. Standard housings have NPT ports and Viton seals. Other seal types are available as an option. BSPT and BSPP port types are also available.
Filter Housing | |||
Port Size | Drain | Max | |
Ordering Information | NPT | NPT | W/P |
Inch | Inch | Bar | |
AA323-511 | 3/4 | 1/8 | 17 |
AA323-561 | 3/4 | Manual | 17 |
AA323-571 | 3/4 | Automatic | 17 |
AA323-611 | 1 | 1/8 | 17 |
AA323-661 | 1 | Manual | 17 |
AA323-671 | 1 | Automatic | 17 |
