CF Bored Flanges Fixed
For flanges with trapped bolt holes – please add T to suffix oforder code (e.g: F16B7T/F16B7LNTS)
F250B-SPE: Eropean Standard, to be used with copper gaskets OD 272.7mm

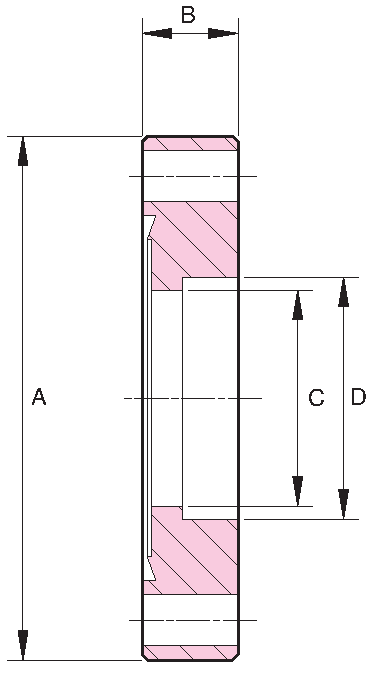

| Order Code | Material | NW | A | B | C | D |
| F16B7 | 304L | 16 | 34 | 7.6 | 6.4 | 6.4 |
| F16B12 | 304L | 16 | 34 | 7.6 | 12.7 | 12.7 |
| F16B14 | 304L | 16 | 34 | 7.6 | 13.2 | 14.3 |
| F16B19 | 304L | 16 | 34 | 7.6 | 16.6 | 19.1 |
| F35B14 | 304L | 35 | 70 | 12.7 | 13.2 | 14.4 |
| F35B25 | 304L | 35 | 70 | 12.7 | 24.2 | 25.5 |
| F35B38 | 304L | 35 | 70 | 12.7 | 36.9 | 38.2 |
| F35B41 | 304L | 35 | 70 | 12.7 | 40.1 | 41.3 |
| F63B51 | 304L | 63 | 114 | 17.4 | 49.6 | 51.1 |
| F63B63 | 304L | 63 | 114 | 17.4 | 61.2 | 63.6 |
| F100B | 304L | 100 | 152 | 19.9 | 99.4 | 101.9 |
| F150B | 304L | 150 | 203 | 22.3 | 149.7 | 152.6 |
| F200B | 304L | 200 | 254 | 24.6 | 200.4 | 203.5 |
| F250B | 304L | 250 | 304 | 27.3 | 250.7 | 254.4 |
| F250B-SPE | 304L | 250 | 304 | 27.3 | 250.7 | 254.4 |
| Order Code | Material | NW | A | B | C | D | E | F | H | x No. |
| F16B18LNS | 316LN | 16 | 34 | 7.3 | 4.3 | 2.5 | 2.5 | 16.0 | 4.8 | 6 |
| F35B38LNS | 316LN | 35 | 69.4 | 13.0 | 6.5 | 8.2 | 8.2 | 35.0 | 4.8 | 6 |
| F38B24LNS | 316LN | 35 | 69.4 | 13.0 | 6.5 | 8.2 | 8.2 | 38.0 | 4.8 | 6 |
| F63B70LNS | 316LN | 63 | 113.5 | 17.5 | 8.4 | 9.5 | 9.5 | 67.0 | 8.0 | 8 |
| F100B104LNS | 316LN | 100 | 151.6 | 19.8 | 8.4 | 10.31 | 10.31 | 100.0 | 9.5 | 16 |
| F150B154LNS | 316LN | 150 | 202.4 | 22.2 | 8.4 | 12.7 | 12.7 | 150.0 | 9.5 | 20 |
| F200B205LNS | 316LN | 200 | 253.2 | 24.6 | 8.4 | 15.1 | 15.1 | 200.0 | 9.5 | 24 |
| F250B256LNS | 316LN | 250 | 306.0 | 24.6 | 8.4 | 15.1 | 15.1 | 250.0 | 9.5 | 32 |
