CF 4-Way Crosses, Fixed

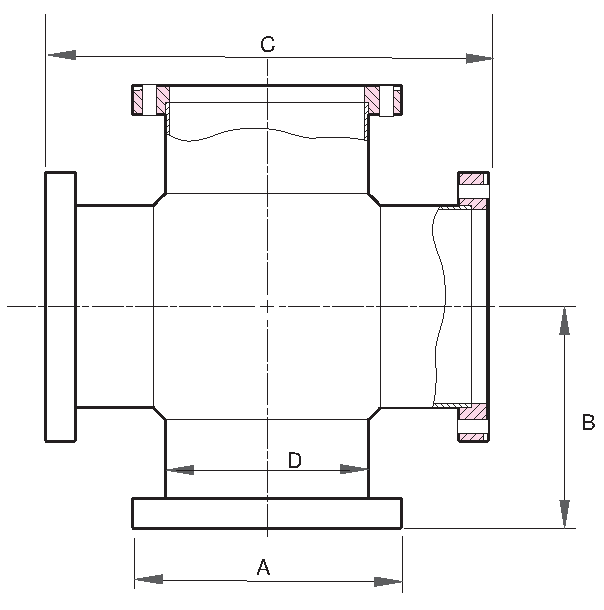

| Order Code | Material | NW | A | B | C | D | Bolt Holes |
| X16 | 304L | 16 | 34 | 38 | 76 | 19 | In Line |
| X35 | 304L | 35 | 70 | 63 | 126 | 38 | In Line |
| X38 | 304L | 35 | 70 | 63 | 126 | 41.5 | In Line |
| X63 | 304L | 63 | 114 | 105 | 210 | 64 | In Line |
| X100 | 304L | 100 | 152 | 135 | 270 | 102 | In Line |
| X150 | 304L | 150 | 203 | 167 | 334 | 152 | In Line |
| X200 | 304L | 200 | 254 | 203 | 406 | 203 | In Line |
| X16S | 304L | 16 | 34 | 38 | 76 | 19 | Straddled |
| X35S | 304L | 35 | 70 | 63 | 126 | 38 | Straddled |
| X38S | 304L | 35 | 70 | 63 | 126 | 41.5 | Straddled |
| X63S | 304L | 63 | 114 | 105 | 210 | 64 | Straddled |
| X100S | 304L | 100 | 152 | 135 | 270 | 102 | Straddled |
| X150S | 304L | 150 | 203 | 167 | 334 | 152 | Straddled |
| X200S | 304L | 200 | 254 | 203 | 406 | 203 | Straddled |
