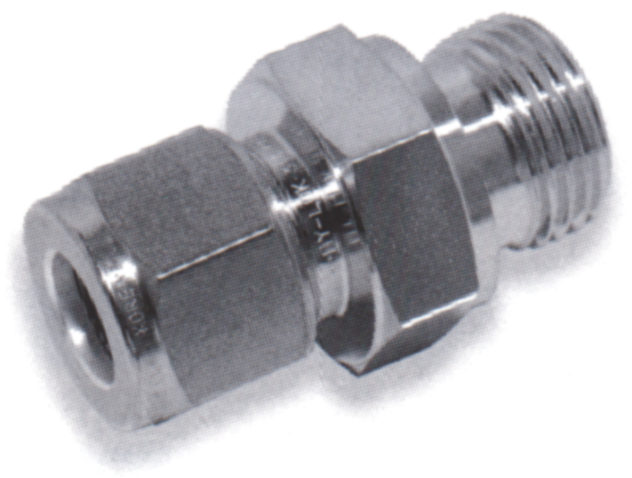

Male Connector for Metal Gasket Seal
Example to create a part number:- | |||||||
COM-3M-2G-S316 | S316 = 316 STAINLESS STEEL | ||||||
COM-3M-2G-BRAS | BRAS = BRASS | ||||||
COM-3M-2G-MONE | MONE = MONEL | ||||||
* Please note that some materials are not always available so please contact us for your enquiry. We are always pleased to help. | |||||||
Other materials are available upon request. | |||||||
For a full list of dimensions shown in the drawing below, please click on the PDF:- |
Male Connector for Metal Gasket Seal, Metric/Imperial | ||
Connection 1 (A) | Connection 2 (T) | |
Ordering Information | Tube O.D. | Male Thread |
MM | BSPP (parallel) | |
COM-3M-2G-S316 | 3 | 1/8 |
COM-3M-4G-S316 | 3 | 1/4 |
COM-4M-2G-S316 | 4 | 1/8 |
COM-6M-2G-S316 | 6 | 1/8 |
COM-6M-4G-S316 | 6 | 1/4 |
COM-6M-6G-S316 | 6 | 3/8 |
COM-6M-8G-S316 | 6 | 1/2 |
COM-8M-2G-S316 | 8 | 1/8 |
COM-8M-4G-S316 | 8 | 1/4 |
COM-8M-6G-S316 | 8 | 3/8 |
COM-8M-8G-S316 | 8 | 1/2 |
COM-10M-4G-S316 | 10 | 1/4 |
COM-10M-6G-S316 | 10 | 3/8 |
COM-10M-8G-S316 | 10 | 1/2 |
COM-12M-4G-S316 | 12 | 1/4 |
COM-12M-6G-S316 | 12 | 3/8 |
COM-12M-8G-S316 | 12 | 1/2 |
COM-12M-12G-S316 | 12 | 3/4 |
COM-15M-8G-S316 | 15 | 1/2 |
COM-16M-6G-S316 | 16 | 3/8 |
COM-16M-8G-S316 | 16 | 1/2 |
COM-18M-8G-S316 | 18 | 1/2 |
COM-18M-12G-S316 | 18 | 3/4 |
COM-20M-8G-S316 | 20 | 1/2 |
COM-20M-12G-S316 | 20 | 3/4 |
COM-22M-12G-S316 | 22 | 3/4 |
COM-22M-16G-S316 | 22 | 1 |
COM-25M-12G-S316 | 25 | 3/4 |
COM-25M-16G-S316 | 25 | 1 |
COM-28M-16G-S316 | 28 | 1 |
COM-28M-20G-S316 | 28 | 1.1/4 |
COM-32M-20G-S316 | 32 | 1.1/4 |
COM-38M-24G-S316 | 38 | 1.1/2 |
