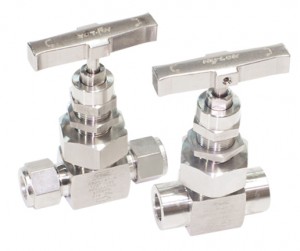

GB Series Union Bonnet Valves

Applications

• Handling corrosives
• High temperature and pressure
• Radioactive and hot condensates

Features

• In-Line or Angle pattern
• Stainless Steel, Alloy 400(Monel), A105
• High temperature grafoil packing
• Metal-to-Metal Seat
• Back seat stem for safety

Specifications

• Maximum Operating Pressure : 6000 psig(420 barg) @ 100?(38?)
• Operating Temperature Range : -65?(-54?) to 1200?(649?)
