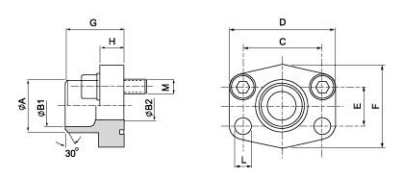

SAE Weld on Flange – Metric Tubes
| SAE weld on Flange Metric Tubes Standard Pressure | ||
| Nominal Flange | Tube | |
| Ordering Information | Size | Size |
| inch | MM | |
| SAAFS-308-20-M | 1/2 | 20 X 3 |
| SAAFS-308-22-M | 1/2 | 22 X 3 |
| SAAFS-312-25-M | 3/4 | 25 X 3 |
| SAAFS-312-28-M | 3/4 | 28 X 3 |
| SAAFS-316-30-M | 1 | 30 X 4 |
| SAAFS-316-35-M | 1 | 35 X 4 |
| SAAFS-320-38-M | 1.1/4 | 38 X 4 |
| SAAFS-320-42-M | 1.1/4 | 42 X 3 |
| SAAFS-324-38-M | 1.1/2 | 38 X 4 |
| SAAFS-324-42-M | 1.1/2 | 42 X 3 |
| SAE weld on Flange Metric Tube High Pressure | ||
| Nominal Flange | Tube | |
| Ordering Information | Size | Size |
| inch | MM | |
| SAAFS-608-20-M | 1/2 | 20 X 3 |
| SAAFS-612-20-M | 3/4 | 20 X 3 |
| SAAFS-612-25-M | 3/4 | 25 X 4 |
| SAAFS-616-25-M | 1 | 25 X 4 |
| SAAFS-616-30-M | 1 | 30 X 4 |
| SAAFS-620-30-M | 1.1/4 | 30 X 4 |
| SAAFS-620-38-M | 1.1/4 | 38 X 6 |
| SAAFS-624-38-M | 1.1/2 | 38 X 6 |
