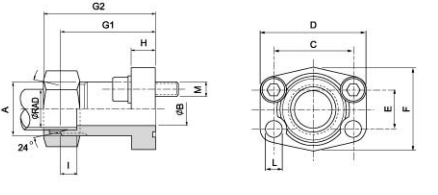

SAE – Metric Threaded Flange DIN 3901/3902

SAE Metric Threaded Flange Standard Pressure
  Nominal Flange METRIC
Ordering Information  Size Size
inch MM
SAAFG-308-15L 1/2 M22 X 1.5
SAAFG-312-22L 3/4 M30 X 2
SAAFG-312-20S 3/4 M30 X 2
SAAFG-316-22L 1 M30 X 2
SAAFG-316-28L 1 M36 X 2
SAAFG-316-20S 1 M30 X 2
SAAFG-316-25S 1 M36 X 2
SAAFG-320-28L 1.1/4 M36 X 2
SAAFG-320-35L 1.1/4 M45 X 2
SAAFG-320-30S 1.1/4 M42 X 2
SAAFG-324-40L 1.1/2 M52 X 2
SAAFG-327-38S 1.1/2 M52 X 2



SAE Metric Threaded Flange High Pressure
  Nominal Flange Metric
Ordering Information Size Size
inch MM
SAAFG-608-16S 1/2 M24 X 1.5
SAAFG-612-25S 3/4 M36 X 2
SAAFG-616-30S 1 M42 X 2
SAAFG-620-38S 1.1/4 M52 X 2
SAAFG-620-30S 1.1/4 M42 X 2
SAAFG-624-38S 1.1/2 M52 X 2
