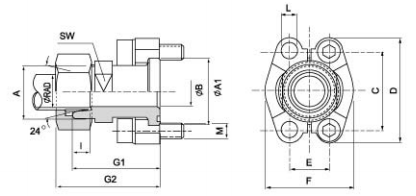

SAE – DIN2353 Connection Flange DIN 3901/3902

SAE-DIN 2353 Connection Flange DIN 3901/3902 Standard
  Nominal Flange METRIC
Ordering Information  Size Size
inch MM
SASFCE-308-15L 1/2 M22 X 1.5
SASFCE-308-16S 1/2 M24 X 1.5
SASFCE-312-18L 3/4 M26 X 1.5
SASFCE-312-22L 3/4 M30 X 2
SASFCE-312-28L 3/4 M36X 2
SASFCE-312-20S 3/4 M30 X 2
SASFCE-316-25S 3/4 M36X 2
SASFCE-316-28L 1 M36 X 2
SASFCE-316-25S 1 M36 X 2
SASFCE-316-30S 1 M42 X 2
SASFCE-320-28L 1.1/4 M36X 2
SASFCE-320-35L 1.1/4 M45 X 2
SASFCE-320-25S 1.1/4 M36 X 2
SASFCE-320-30S 1.1/4 M42 X 2
SASFCE-320-38S 1.1/4 M52 X 2
SASFCE-324-42L 1.1/2 M52 X 2
SASFCE-324-38S 1.1/2 M52 X 2



SAE-DIN 2353 Connection Flange DIN 3901/3902 High
  Nominal Flange METRIC
Ordering Information Size Size
inch MM
SASFCE-608-16S 1/2 M24 X  1.5
SASFCE-612-16S 3/4 M24 X  1.5
SASFCE-612-20S 3/4 M30 X 2
SASFCE-612-25S 3/4 M36 X 2
SASFCE-612-30S 3/4 M42 X 2
SASFCE-612-25S 1 M36 X 2
SASFCE-616-30S 1 M42 X 2
SASFCE-620-30S 1.1/4 M42 X 2
SASFCE-620-38S 1.1/4 M52 X 2
SASFCE-624-38S 1.1/2 M52 X 2
