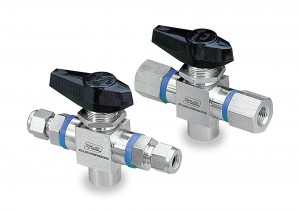

105 Series High Pressure Ball Valves for General Service

Applications

• High pressure Instrument Lines
• Hydraulic lines

Features

• 2-way or 3-way designs
• Stainless Steel, Brass,
• Alloy 400(Monel), A105
• PVDF, PEEK or PCTFE seats
• Fire safety designed to API 607,
• BS 6755 Part 2
• Locking device available

Specifications

• Maximum Operating Pressure : 10000 psig(700 barg) @ 100?(38?)
• Operating Temperature Range :
  • PVDF Seat : -22?(-30?) to 265?(130?)
  • PEEK Seat : -65?(-54?) to 500?(260?)
  • PCTFE Seat : -22?(-30?) to 355?(180?)
