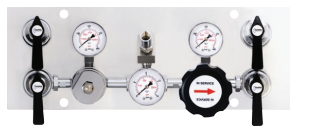

HPI 300P – High purity semi-automatic switchover supply panel

The HPI 300P is a semi-automatic high purity switchover panel which prevents downtime by automatically switching gas supply from the primary cylinder bank to the reserve cylinder. The user resets the primary bank by turning the knob. Outlet pressure is factory pre-set

APPLICATIONS:

Laboratory pressure control
Research sample systems gases
Component testing
Petrochemical industry
Emission monitoring systems
Controlled atmosphere
Service & test equipment

FEATURES:

Recommended for non-corrosive gases purity levels up to grade 6.0 (99.9999)
Wall mounting panel and brackets included
Ready to install wall mounting panel
316L stainless steel diaphragm eliminates contamination from diffusion or outgassing
Purge function and diaphragm shut-off valves for the best results
Possible to connect 2 gas cylinders or gas cylinder and a gas for purging operation
HPI 300PC – chrome plated body, bonnet and fittings
HPI 300PS – 316L ctainless steel body, bonnet and fittings
1×10-9 mbar I/s He inboard helium leak rate to maintain gas purity levels
Inlet / outlet – 1/4” FNPT
Maximum inlet pressure 300 bar (4350 psig)
External relief valve standard
Cleaned for oxygen service
