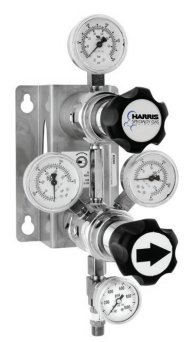

SG 905SS – High purity single regulator mounting station

The SG 905 SS semi-automatic high purity switchover prevents downtime by automatically switching gas supply from the primary cylinder bank to the reserve cylinder bank. The user resets the primary bank by turning the knob. Manual adjustment of the individual regulators is not required. All systems include a line control regulator

APPLICATIONS:

Semi-automatic switchover

FEATURES:

Wall mounting panel and brackets included
Maximum inlet pressure 210 bar 3000 psig
Delivery pressure: 0-125 psig; except acetylene 0-15 psig
Inlet / outlet – 1/4” NPT
Headers include diaphragm-type shut-off valves
All systems include stainless steel pigtails with check valves and stainless steel inner core
Acetylene includes dry-type flash arrestors on pigtail end
All pigtails have protective armour casing for added safety
