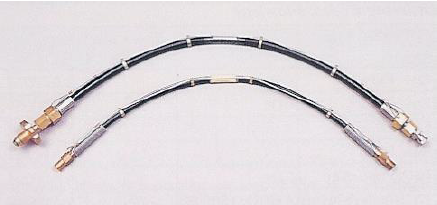

HP Manifold Hose Assemblies (Including Anti-Whip Cable)

HP Manifold Hose Assemblies (Including Anti-Whip Cable)


H6046 Oxygen (Inc Heat Sink) – 900mm
H6042 Inert/Air – 900mm
H6043 Hydrogen/Methane/Propane – 900mm
H6045 Acetylene (Inc: NRV) – 900mm
H6047 CO2 (BS 341 No 8) – 1mtr


MCP HP Manifold Hose Assemblies (Including Anti-Whip Cable)
Inert Gas (Not for use with Oxygen)

H6049 ¼”NB x 2.0mtr fitted with G3/8” RH – G3/8”BSP RH
H6050 ¼”NB x 3.0mtr fitted with G3/8” RH – G3/8”BSP RH
H6051 ¼”NB x 4.0mtr fitted with G3/8” RH – G3/8”BSP RH
H6052 3/8”NB x 2.0mtr fitted with G3/8” RH – G3/8”BSP RH
H6053 3/8”NB x 3.0mtr fitted with G3/8” RH – G3/8”BSP RH
H6054 3/8”NB x 4.0mtr fitted with G3/8” RH – G3/8”BSP RH

Flamable (Not for use with Acetylene)

H6055 ¼”NB x 2.0mtr fitted with G3/8” LH – G3/8”BSP LH
H6056 ¼”NB x 3.0mtr fitted with G3/8” LH – G3/8”BSP LH
H6057 ¼”NB x 4.0mtr fitted with G3/8” LH – G3/8”BSP LH

Oxygen MCP Hoses (Fitted with Heat Sink)

H6097 ¼”NB x 2.0mtr fitted with G3/8” RH – G3/8”BSP RH
H6061 3/8”NB x 2.0mtr fitted with G3/8” RH – G3/8”BSP RH
Additional hoses in diameter, length and gas type may be available upon request.

LP connecting hose assemblies for use on 1 cylinder manifolds

H6189 Acetylene – 330mm
H6190 Oxygen – 250mm
H6191 H2/Flammable – 250mm
H6192 Inert/Air/Helium – 250mm

Safety relief valve assemblies

H6187 1/2” BSP male SRV – 12.5 bar G WP
H6188 1/2” BSP male SRV – 4.50 bar G WP
