350 Bar Filter Housing 3/4 or 1″
Materials 316L Stainless Steel Pressure 350 Bar Ports 3/4” or 1” Element 38.178.

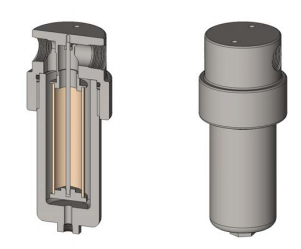

SS337 series filter housings are specified for 350 Bar 3/4" and 1" line size applications. Standard housings have NPT ports and a Viton seal. Other seal types are available as an option. BSPT and BSPP port types are also available. The housings are free from welds and comply with NACE MR-01-75 and are CE marked in accordance with PED 97/23/EC. These housings can also be supplied in a wide range of exotic materials, such as Hastelloy, Monel, Titanium etc.
Filter Housing | |||
Port Size | Drain | Max | |
Ordering Information | NPT | NPT | W/P |
Inch | Inch | Bar | |
SS337-501 | 3/4 | None | 350 |
SS337-521 | 3/4 | 1/4 | 350 |
SS337-541 | 3/4 | 1/2 | 350 |
SS337-601 | 1 | None | 350 |
SS337-621 | 1 | 1/4 | 350 |
SS337-641 | 1 | 1/2 | 350 |
