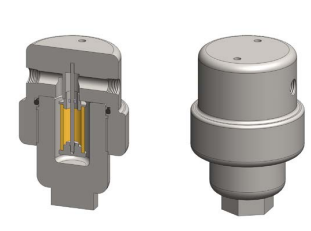

700 Bar Filter Housing 1/8 or 1/4
Materials 316L Stainless Steel Pressure 700 Bar Ports 1/8” or 1/4” Element 12.32.
SS119 series filter housings are specified for 1/8" & 1/4" line size applications up to 700 Bar where response times are critical. If the flow rate or contamination is higher, or where service intervals must be kept as long as possible, the SS129 series housings should be considered. For applications less than 340 Bar see the SS117 series housings. Standard housings have NPT ports and a Viton seal. Other seal types are available as an option. BSPT and BSPP port types are also available. The housings are free from welds and comply with NACE MR-01-75 and are CE marked in accordance with PED 97/23/EC. These housings can also be supplied in a wide range of exotic materials, such as Hastelloy, Monel, Titanium etc
Filter Housing | |||
Port Size | Drain | Max | |
Ordering Information | NPT | NPT | W/P |
Inch | Inch | Bar | |
SS119-101 | 1/8 | None | 700 |
SS119-111 | 1/8 | 1/8 | 700 |
SS119-201 | 1/4 | None | 700 |
SS119-221 | 1/4 | 1/4 | 700 |
