700 Bar Filter Housing with Differential Pressure Indicators 1/4 or 12

Materials 316L Stainless Steel Pressure 700 Bar Ports 1/4” or 1/2” Element 25.178.

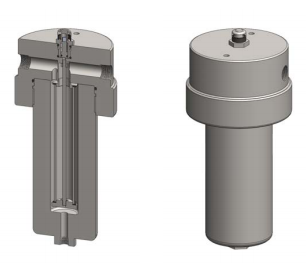

SiS239 series filter housings with differential pressure indicators are specified for 700 Bar 1/4" and 1/2" line size applications where the flow rate or contamination is high, or where service intervals must be kept as long as possible. For lower pressures see the SiS215, SiS216, and SS218 series housings. The SiS239 series offers a more compact design for lower flow rates. Standard housings have NPT ports and Viton seals. Other seal types are available as an option. BSPT and BSPP port types are also available. The housings are free from welds and comply with NACE MR-01-75 and are CE marked in accordance with PED 97/23/EC. These housings can also be supplied in a wide range of exotic materials, such as Hastelloy, Monel, Titanium etc.

Filter Housing with DPI
  Port Size Drain Max
Ordering Information NPT NPT W/P
Inch Inch Bar
SiS239-201 1/4 None 700
SiS239-221 1/4 1/4 700
SiS239-401 1/2 None 700
SiS239-421 1/2 1/4 700
SiS239-441 1/2 1/2 700
