7 Bar Membrane Housing 1/4 or 1/8 Spigot or NPT

Materials PTFE Pressure 7 Bar Ports 1/4” & 1/8" Spigot or NPT Membrane MT.33.

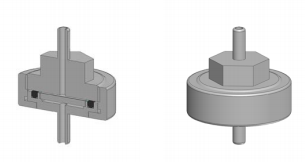

FML101 membrane housings use a porous PTFE membrane, which is supported by a sintered porous PTFE disc on the outlet side. Any liquid in the gas sample will be prevented from passing through the membrane. The housing design allows a quick change of the membrane by unscrewing a retaining collar. Standard housings have 1/4" diameter push-on spigots or female NPT ports and include Viton seals. Other seal types are available as an option. BSPT and BSPP port types are also available. Special housings can also be produced with different connections and membrane sizes

Membrane Housing
  Port Size Max
Ordering Information NPT W/P
Inch Bar
FML101-101 1/8 F 7
FML101-201 1/4 F 7
FML101-209 1/4 Spigot 7
